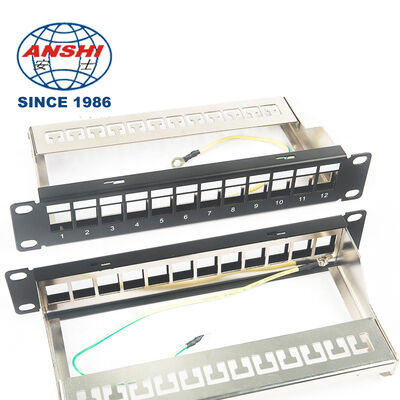

10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment

  • 10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment
  • 10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment
  • 10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment
  • 10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment
  • 10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment
Menşe yeri Zhejiang, Çin
Marka adı ANSHI or OEM
Sertifika SGS; DAS
Min sipariş miktarı 100
Fiyat Anlaşılabilir
Yetenek temini Aylık 10000 Adet
Ürün ayrıntıları
İsim Bağlantı paneli Ara bağlantı paneli Liman 12 port
Kablo türleri Cat6, Cat6A Uygulamalar Telekomünikasyon
Renk Siyah Bağlayıcı Türü RJ45
Marka ANSHI/OEM Boyutlar 10 inç, 1U
Mesaj bırakın
Ürün Açıklaması
Product Name Cat6/Cat6a Patch Panel Coupler
Product Type 12-port patch panel
Specifications 10 ′ ′ mounting dimensions, modular design, with 12 Category 5e modules
Material Made of high-quality cold-rolled steel with ABS injection molding
Color Black
Main Technical Parameters
  • IDC: Phosphor bronze, silver-plated (20–50 μiLZh), suitable for 22, 24, and 26 AWG (0.64, 0.5, and 0.4 mm) cables, with a service life of at least 250 cycles.
  • 8-pin connector: Phosphor bronze, gold-plated (20–50 μLZh); plugs and sockets can be reinserted at least 750 times
  • Contact resistance: No more than 2.5 mΩ under normal atmospheric pressure (excluding body resistance)
  • Insulation resistance: Not less than 1000 MΩ under normal atmospheric pressure
  • Electrical strength: DC 1000 V (AC 700 V) with no breakdown or arcing for 1 minute
  • Standards: Designed and manufactured in accordance with international standards ISO/IEC 11801 and TIA/EIA 568

Available for full-load operation.

10 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment 010 Inch 1U 12 Port FTP CAT5E Cat6 CAT6A Blank Unloaded Patch Panel Coupler OEM Telecom Equipment 1
