4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter

  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
  • 4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter
Menşe yeri Çin
Marka adı ANSHI
Sertifika ISO9001, SGS
Model numarası AS-ODF-FDB-4B
Min sipariş miktarı Tartışabilir
Fiyat Anlaşılabilir
Teslim süresi Haftada 10000pcs

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İsim Fiber Optik Dağıtım kutusu Boyut 140*105*27mm
Kabiliyet 4 liman Başvuru Ftth
Malzeme Glorry yüzeyi ile SPCC Renk Beyaz kapalı
Paketleme 1 adet/kutu
Vurgulamak

4 port FTTH distribution box

,

wall mount fiber optic box

,

FTTH box with SC adapter
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Mesaj bırakın
Ürün Açıklaması
ANSHI 4 Cores Fiber Optic Terminal Box

This box is the interface between drop optical cable and the patch cord connecting customer ONT.
Can used for 4 Termnations.

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Product Features

1. Material: Metal Cold Roll Sheet (SPCC)

2. Cable Port:3 Port

3. Box include the fiber organizerfor splicing and termination of the drop optical fiber cables

4. The box can install max 4pcs SC SX Adapter and 4 cores pigtails

5. Smooth installation with compliant bending radius

6. Connection, fixing and arrangement of drop cables

(1) Easy to re-enter not re-entry kit required

(2) Compliant with cable diameter from 5mm to 10mm

7. Easy installation for drop cable without specific tool

8. Open and re-closed as often as required without using power consumable material or speical tools

9. Corrosion resistance and watertight and able to protect the components from harsh, high heat, dust and humidity environment


Technical Specifications
Item AS-ODF-FDB-4B
Dimensions 140*105*27mm
Entry & Outlet Port 3 Port
Adapter

SC/UPC SM SX Adapter *4 pieces

OR

LC SM DX Adapter *4 pieces

OR

FC Adapter * 4 pieces
Adapter Ports 4 ports
Splitter Compatibility

1x4 PLC Splitter

or

Pigtail
Color Offwhite or Customize
Operating Temperature -25°C to 60°C (5-95% relative humidity)

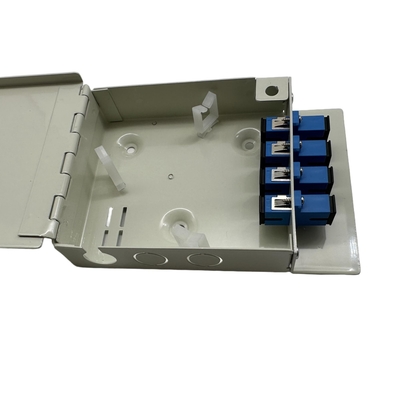

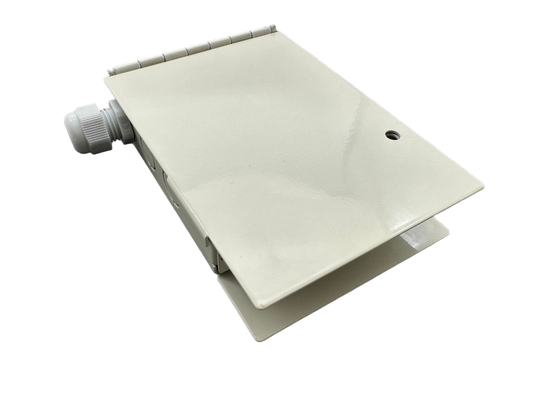

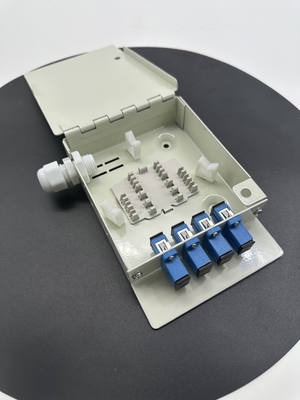

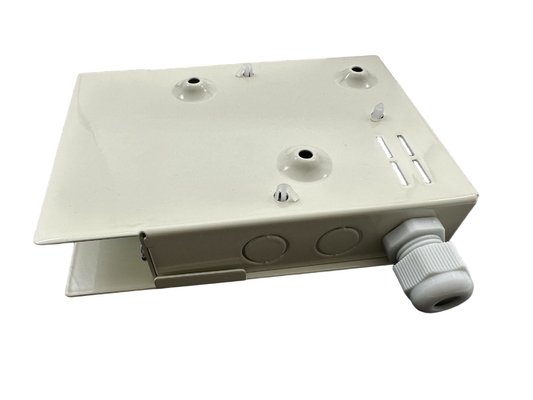

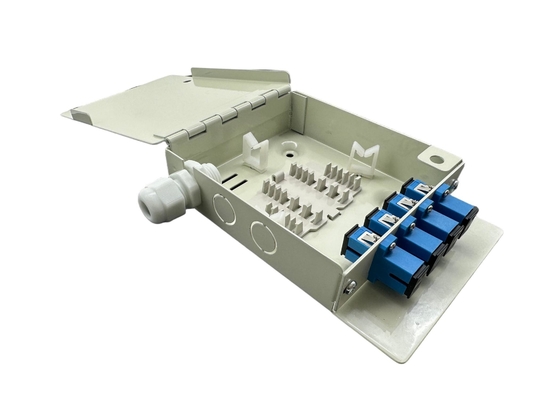

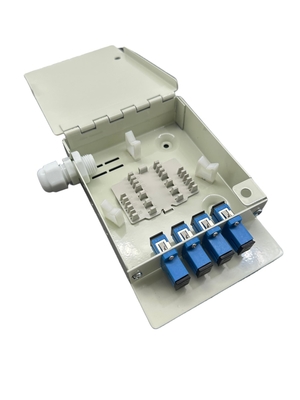

Product Images

4 Port Indoor FTTH Wall Mount and Desktop Fiber Optic Distribution Box with SC/UPC Adapter 0
