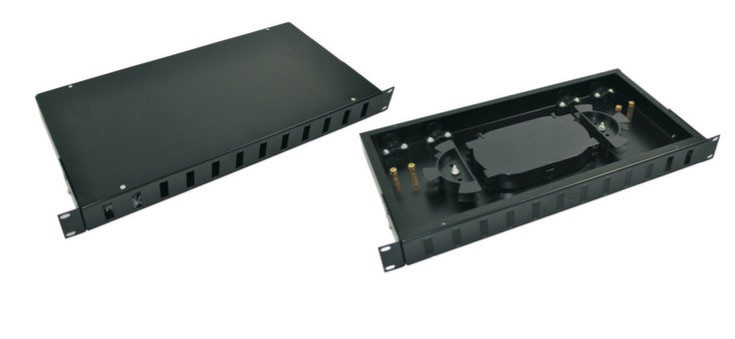

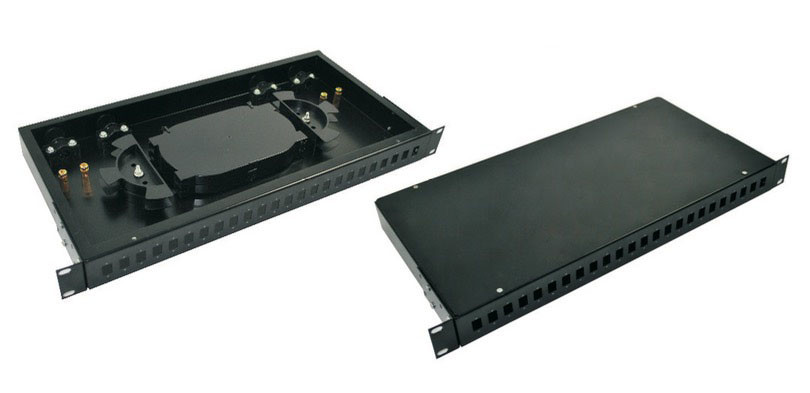

19 '' 1U Height ODF Optical Distribution Frame Ethernet Distribution Panel

19 '' 1U Height ODF Optical Distribution Frame Ethernet Distribution Panel

    • 19 '' 1U Height ODF Optical Distribution Frame Ethernet Distribution Panel
    • 19 '' 1U Height ODF Optical Distribution Frame Ethernet Distribution Panel
  • 19 '' 1U Height ODF Optical Distribution Frame Ethernet Distribution Panel

    Ürün ayrıntıları:

    Place of Origin: China
    Marka adı: ANSHI
    Sertifika: ROHS, ISO9001
    Model Number: AS-ODF-FPP

    Ödeme & teslimat koşulları:

    Minimum Order Quantity: 100
    Fiyat: Negotiable
    Supply Ability: 10000PCS/WEEK
    Şimdi başvurun
    Detaylı ürün tanımı
    name: optical distribution frame odf Material: iron
    type: Drawer type high: 1u
    install: 19" Adapter: FC, SC, ST, LC (Can be customized)
    capacity: 24core

    Ftth 19 '' 1U height fiber patch panel , Fiber Optic Terminal Box Optical Distribution Frames ODF



    Features:


    1)  19" standard frame is used
    2)  Designed by full modulization:
    a)  Unit box has such functions as optical fiber fusion, tray storing and
    distribution
    b)  Each fusion module can be singly taken out to meet the demands for
    operating frame
    3)  Optical cable, pigtail fiber and patch cords can be clearly monitored
    4)  Convenient operation can still be guaranteed even though the capacity
    has reached its maximum
    5)  Such adaptors as FC, SC can be installed by the fusion module
    6)  Working temperature: -5 – 40°C
    7)  Relative humidity: ≤85% (30°C)
    8)  Air pressure: 70 - 106kPa
    9)  Standard working wavelength: 850nm, 1,310nm, 1,550nm
    10)  Connector loss: ≤0.5dB
    11)  Back wave loss:
    a) PC: ≥40dB
    b) UPC: ≥50dB
    c) APC: ≥60dB
    12)  Resistance to voltage between high-voltage protection ground and
    frame: ≥3KV (DC) / 1min no puncture or arc
    13)  Insulation resistance between high-voltage protection ground and
    frame: ≥1,000m&Omega / 500V (DC)
    14)  Life: 1,000 times



    Optical distribution box is used at optical access network terminal, it acts as the optical distribution and fusion.

    1.Box body is made of metal materials, it looks nice in shape and its operation is convenient, anti-ageing and corrosion can be assured thanks to the adoption of SMC compound materials, the sealing performance meets the IP65-level requirements of GB4208 standard, thus, it is suitable for outdoor distribution.

    2.It is the combination of three functions, namely optical fusion, store and distribution;Fusion tray can be turned over, also can be pulled out to operate outside the box, the expansion of capacity is easy;

    3. daptor is installed with a certain angel, maintenance is easy, transmission loss is low;It suits to common optical fiber cable, also to band optical fiber cable’s fusion.

    4.Working temperature: -5°C~40°C, Relative humidity: ≤85%(30°C)Air pressure: 70~106Kpa;

    5.Standard working wavelength: 850nm 1310nm 1550nm

    6.Connector loss: ≤0.5dB

    7.Backwave loss: PC≥40dB,UPC≥50dB,APC≥60dB;

    8.Resistance to voltage between high-voltage protection ground and frame: ≥3KV(DC)/1min no puncture or arc.

    9.Insulation resistance between high-voltage protection ground and frame: ≥1000MΩ/500V(DC)

    10.Life:1000 times





    Application:



    Telecommunications subscriber loop



    Fiber to the home (FTTH)



    LAN/WAN



    CATV


    19 '' 1U Height ODF Optical Distribution Frame Ethernet Distribution Panel
