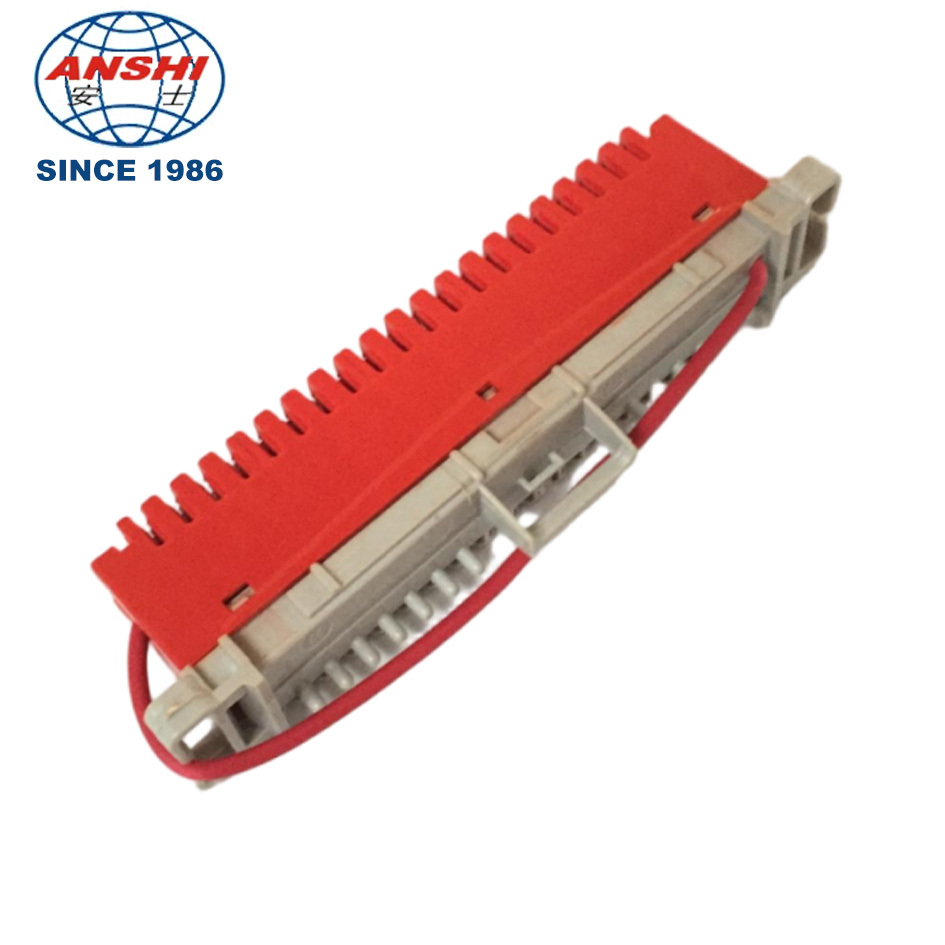

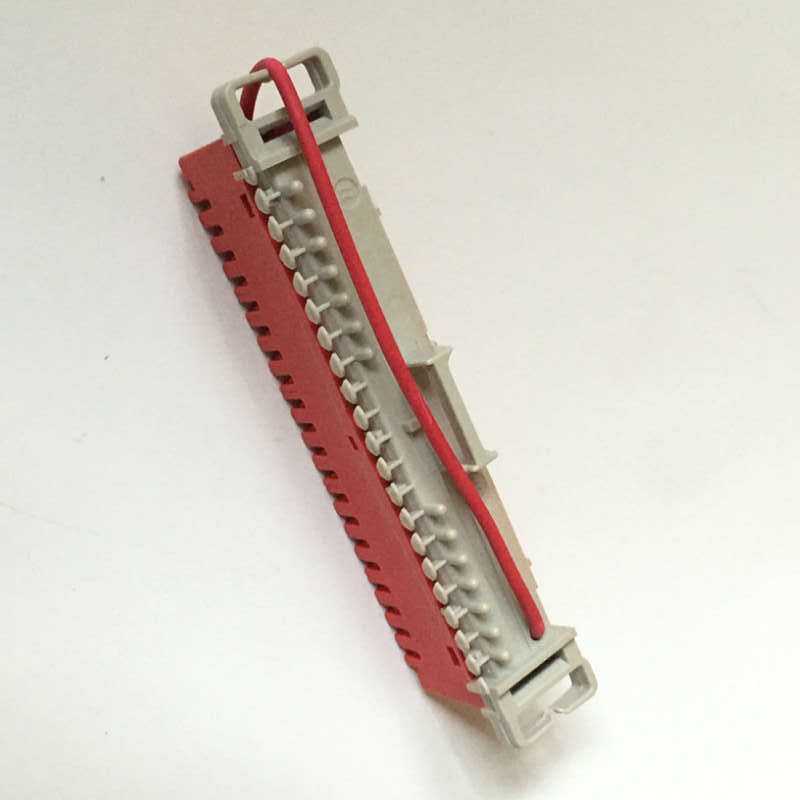

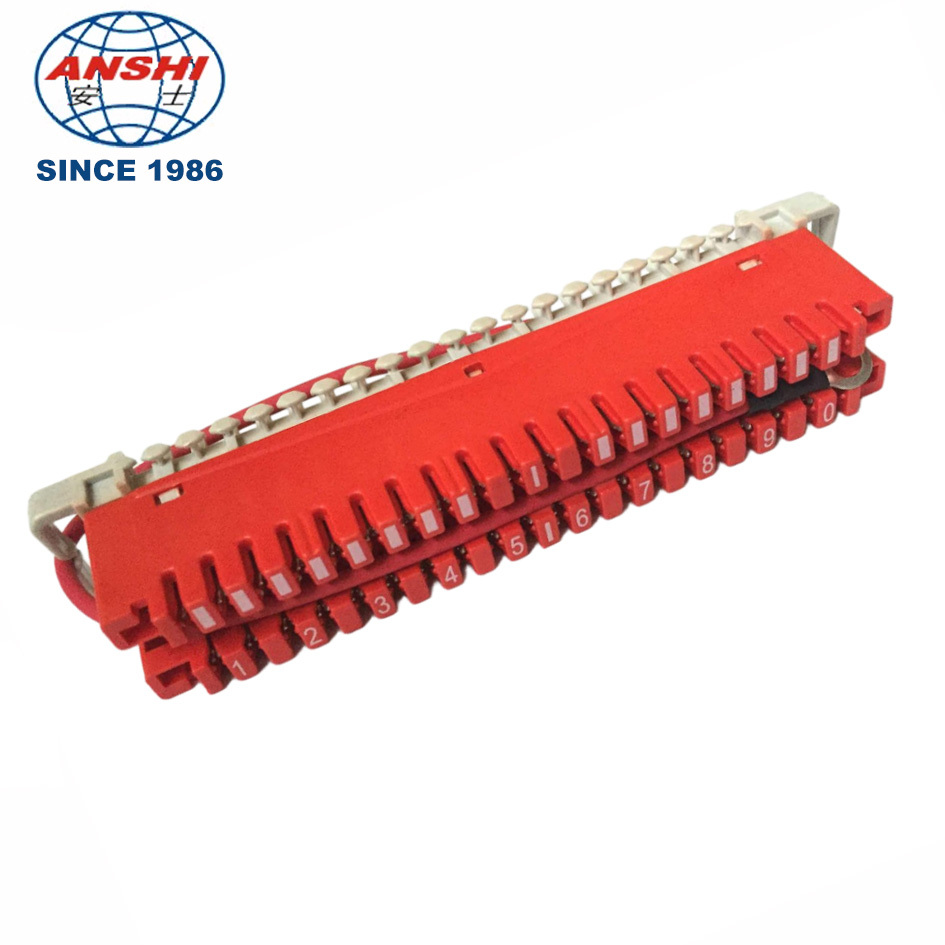

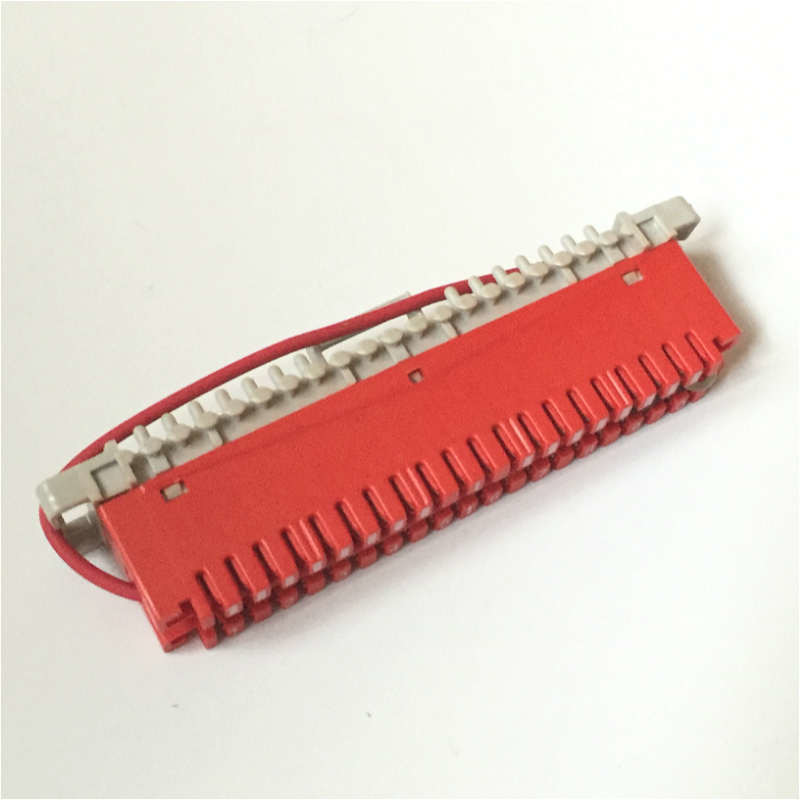

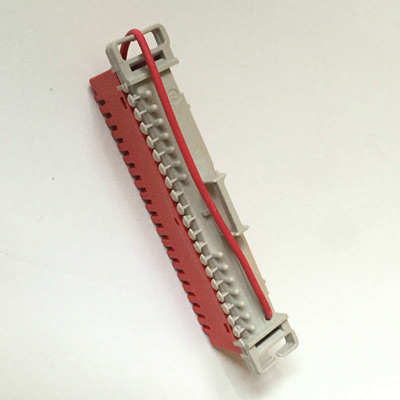

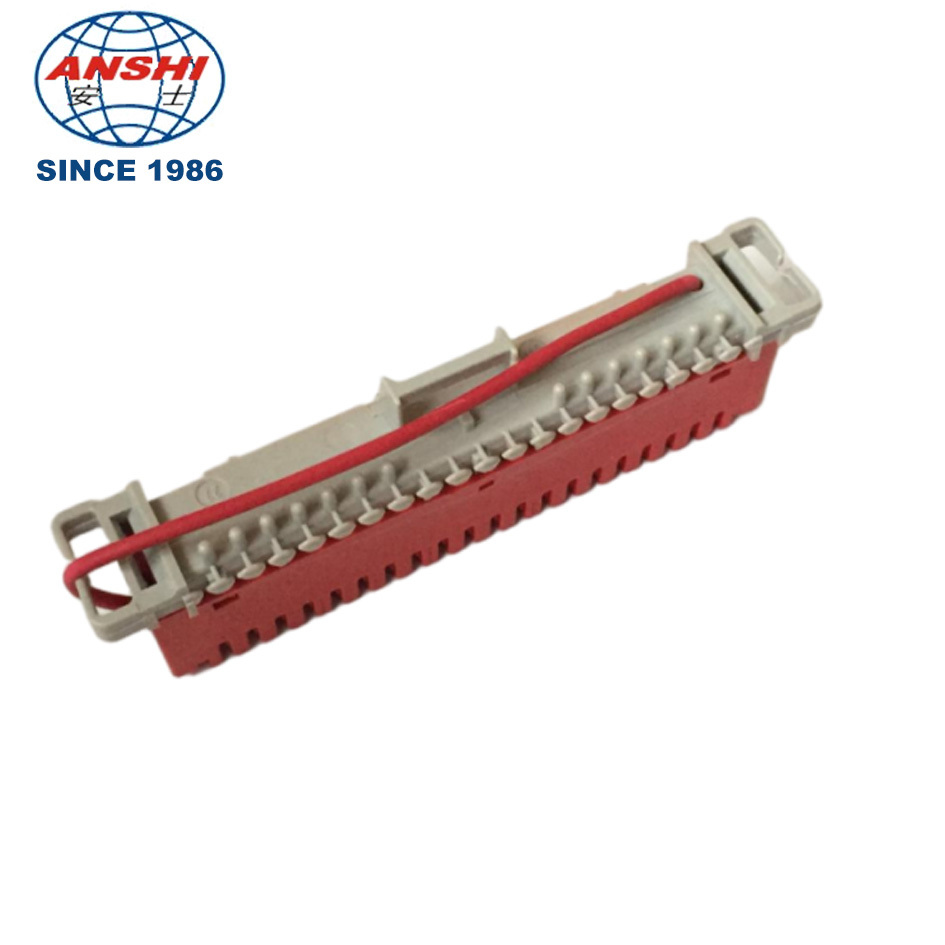

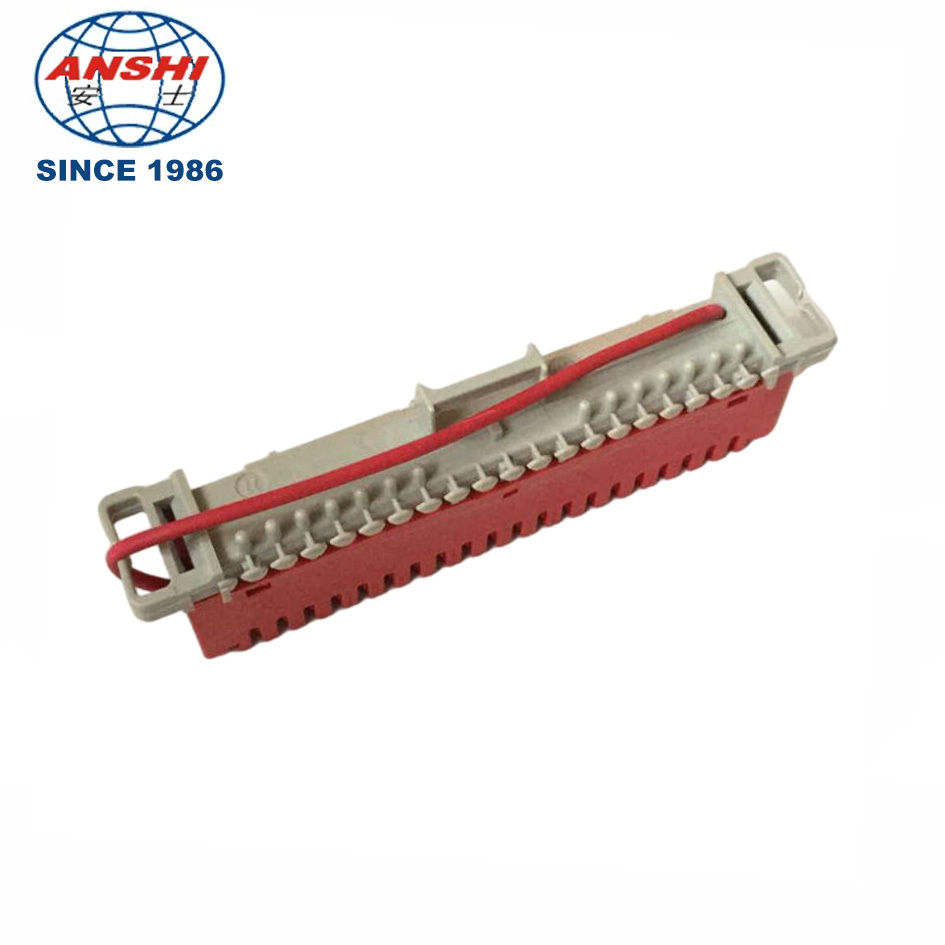

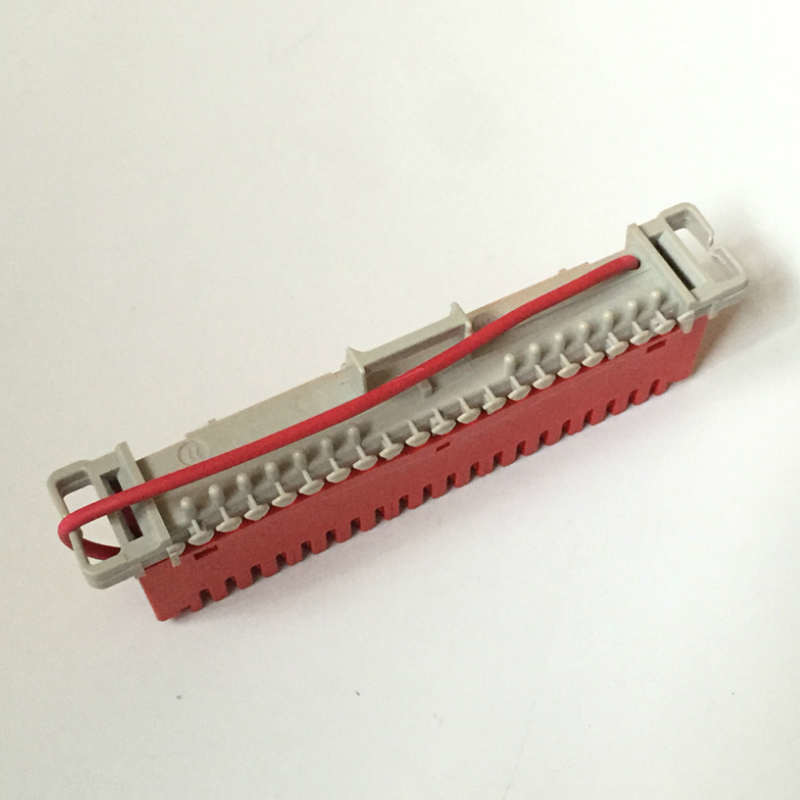

ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication

  • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
  • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
  • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
  • ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication
Menşe yeri ZHEJIANG, CHINA
Marka adı ANSHI
Sertifika ISO9001, CNACL, SGS, DAS
Model numarası XL-011
Min sipariş miktarı 100 pcs
Fiyat Negotiable
Ambalaj bilgileri CARTON:53*24*24CM
Yetenek temini 10000 pcs per week

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Material ABS or PBT Color Red and Grey
Type Disconnection Contact Phosphor bronze with silver coating
Application Telecommunication Protection Level UL-94VO
Vurgulamak

lsa disconnection module

,

krone disconnection module
Mesaj bırakın
Ürün Açıklaması

ABS or PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication





Quick Detail:



1. Material: PBT or ABS(UL94V-0)

2. Contact: Phosphor Bronze

3. Silver Plating: 0.5 um1.25 um5 um

4. Can be installed on krone type stainless steel back mount frames

5. Available with 50pair block tag and 100pair block tag.

6. for mounting on MDF,racks,profile bracket,indoor and outdoor distribution box,cross connection cabinets.



2 types:

1.Clamp

2. Orbit



Applications:



High speed LAN and WAN systems,used to connect the Telecom and Data wires with punch down tools.





Specifications :



Mechanical Performance Insertion force : 40~75N
Pull Out Force : F≥25N(axial) F≥7.5N(radial)
IDC Life : 200 times(20-26 AWG Solid wire) minimum
Copper Conductor Diameter: Φ0.4~Φ0.8(mm)
Environment Characteristic Storage Tempreture: 40 to 70°C
Operating Temperature : 10 to 60°C
Relative Humidity: 95%, noncondition
Electrical Performance Insulation resistance: 1000 Mohms minimum
Contact resistance :7 mohms maximum

Dielectric intensity: AC 1000 Vrms 50Hz or 60Hz in 60s





Why you choose us:

1. 30 years manufactory experience

2. OEM/ODM available

3. Steady product quality

4. Strict quality control

5. Strictly conform to CE,ROHS,UL certificate

6. Quick delivery time



ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication 0

Disconnection Contact:



S2 Disconnection modules use a two piece contact (normally closed), with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test Cord can be inserted into a pair to test each side (look both ways) of the circuit independently. This greayly accelerates fault identification. The centre contact point can also be used for monitoring or over voltage protection.

ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication 1



Connection Contact:



Connection Modules have a one piece contact providing a continuous link between permanent wiring and jumper wiring, giving provision for monitoring access and overvoltage protection.

ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication 2



Switching Contact:



Switching Modules house individual contacts and hence the circuits are disconnected when

idle. By inserting plugs, cords or over voltage protection, the circuits can be connected when

necessary.



ABS / PBT KRONE Standard LSA Plus Module 10 Pairs Earth Module For Telecommunication 3
